Storeroom

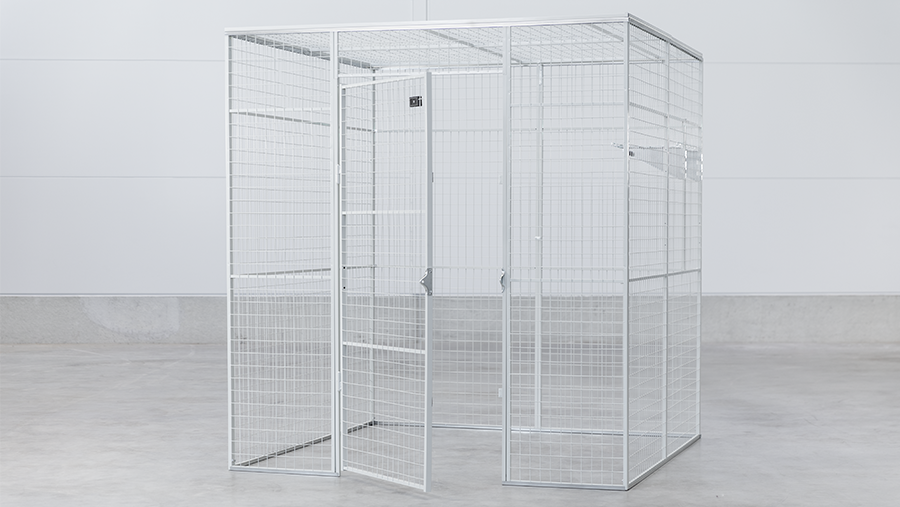

Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.
Door
| CAD | Articolo | Altezza (mm) | Larghezza (mm) | Descrizione | |
|---|---|---|---|---|---|
|
|
30-4225750 | 2250 | 750 | Door |
1
3
|
|
|
30-4225900 | 2250 | 900 | Door |
1
3
|
Locks
| CAD | Articolo | Descrizione | |
|---|---|---|---|
|
|
XIT-L01-103 | X-It cylinder lock, hinge door, left, System F |
2
2
|
|
|
XIT-R01-103 | X-It cylinder lock, hinge door, right, System F |
2
2
|
|
|
XIT-L09-103 | X-It Electric with escape release function, hinge door, left, System F |
2
1
|
|
|
XIT-R09-103 | X-It Electric with escape release function, hinge door, right, System F |
2
1
|
Wall section
| CAD | Articolo | Altezza (mm) | Larghezza (mm) | Descrizione | |
|---|---|---|---|---|---|
|
|
30-2020 | 2250 | 200 | Wall section |
1
3
|
|
|
30-2025 | 2250 | 250 | Wall section |
3
|
|
|
30-2035 | 2250 | 350 | Wall section |
3
|
|
|
30-2040 | 2250 | 400 | Wall section |
3
|
|
|
30-2055 | 2250 | 550 | Wall section |
3
|
|
|
30-2060 | 2250 | 600 | Wall section |
3
|
|
|
30-2080 | 2250 | 800 | Wall section |
2
3
|
|
|
30-2100 | 2250 | 1000 | Wall section |
3
|
|
|
30-2110 | 2250 | 1100 | Wall section |
3
|
|
|
30-2120 | 2250 | 1200 | Wall section |
3
|
|
|
30-2150 | 2250 | 1500 | Wall section |
1
3
|
Accessories/Locks
| CAD | Articolo | Descrizione | |
|---|---|---|---|
|
|
34-00110 | Fittings for number patch, F/FK system |
2
|
|
|
34-00120 | Shelf, double mounting. 1200x400 mm |
1
3
|
|
|
34-00130 | Shelf, single mounting. 1200x400 mm |
1
3
|
Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.
• With extra robust tubular construction in the doors.
• Can be combined with the FK and FP systems.
• Can be cut to suit existing construction.
• Can be supplied with a roof for ceiling heights exceeding 3.5 metres.
• The walls are painted in RAL 9018.
| Product facts | ||
|---|---|---|
| Product | Size (mm) | Description |
| Vertical tubes | 19x19 | Tubular steel frame, door |
| Horizontal tubes | 15x15 | Tubular steel frame, wall |
| Vertical tubes | 30x20 | Tubular steel frame, door |
| Horizontal tubes | 25x15 | Tubular steel frame, door |
| Vertical wires | Ø 3 | Steel mesh |
| Horizontal wires | Ø 2,5 | Steel mesh |
| Dimensions | 50x65 | |
| 30-4225750(1) | 2000x710 | Door opening dimensions |
| 30-4275900(1) | 2000x860 | Door opening dimensions |
