Magazzino a rete

Standard (F)

3D

Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.

Richiedi subito il tuo preventivo

Modelli

  • Door

    2 Articoli
    CAD Articolo Descrizione Larghezza (mm) Altezza (mm)

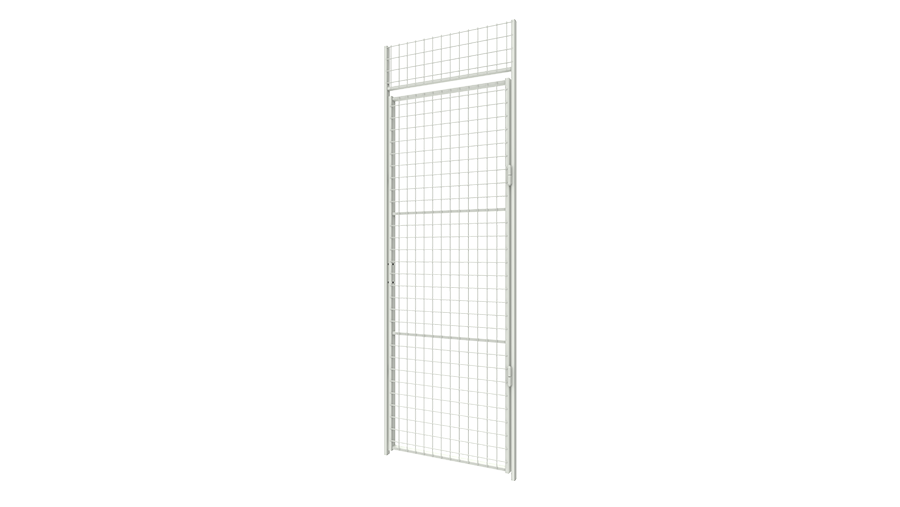

    30-4225750 Door 750 2250
    1 3

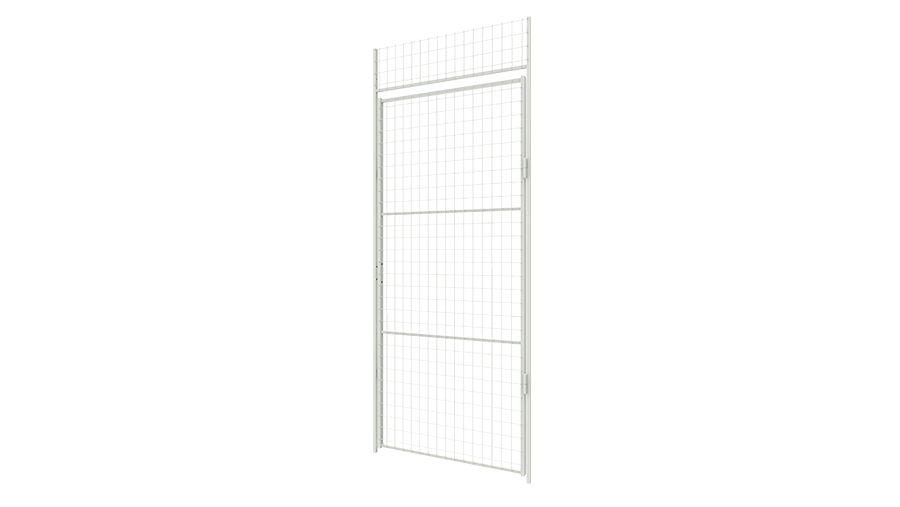

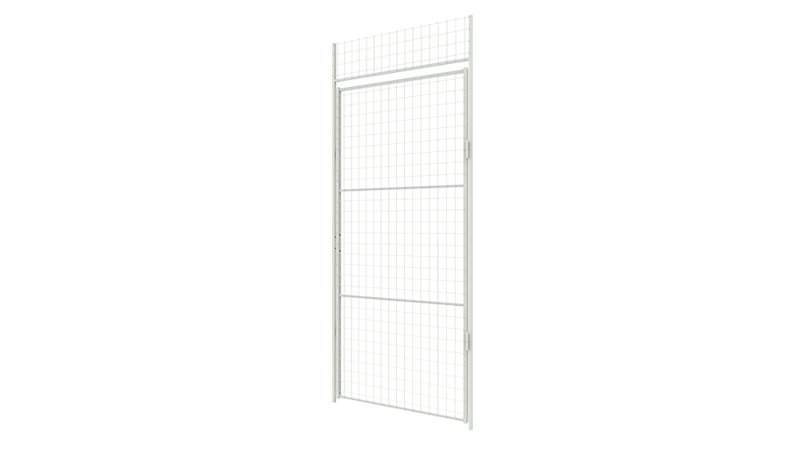

    30-4225900 Door 900 2250
    1 3
  • Locks

    7 Articoli
    CAD Articolo Descrizione

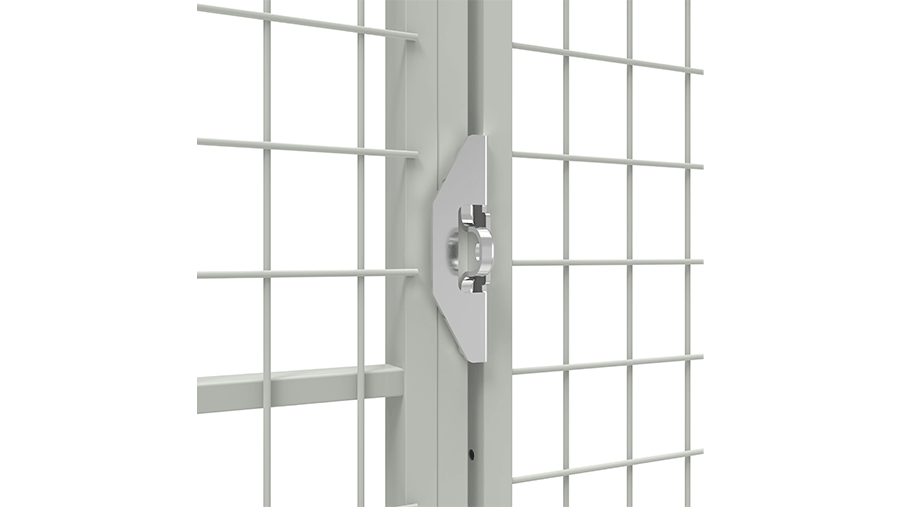

    34-00044 Padlock fitting (standard)
    1

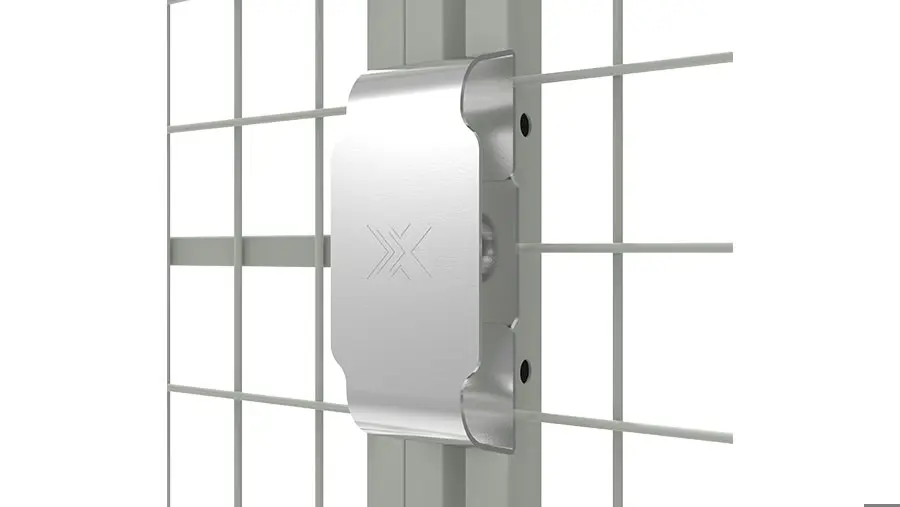

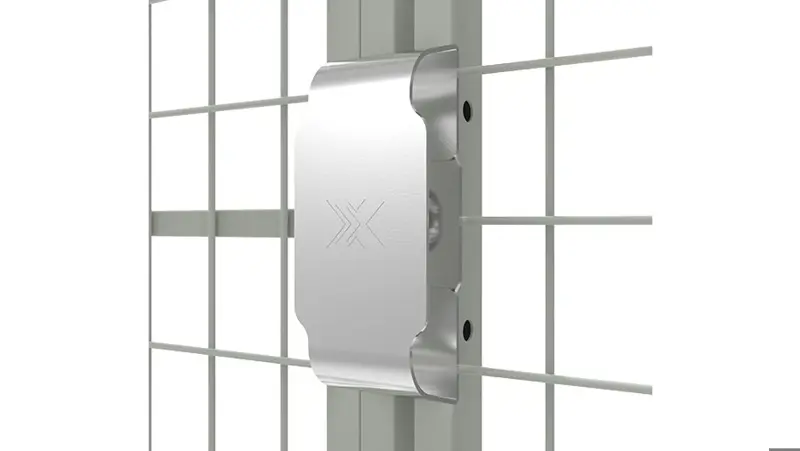

    34-00055 Reinforced padlock fitting with cover (optional)
    1

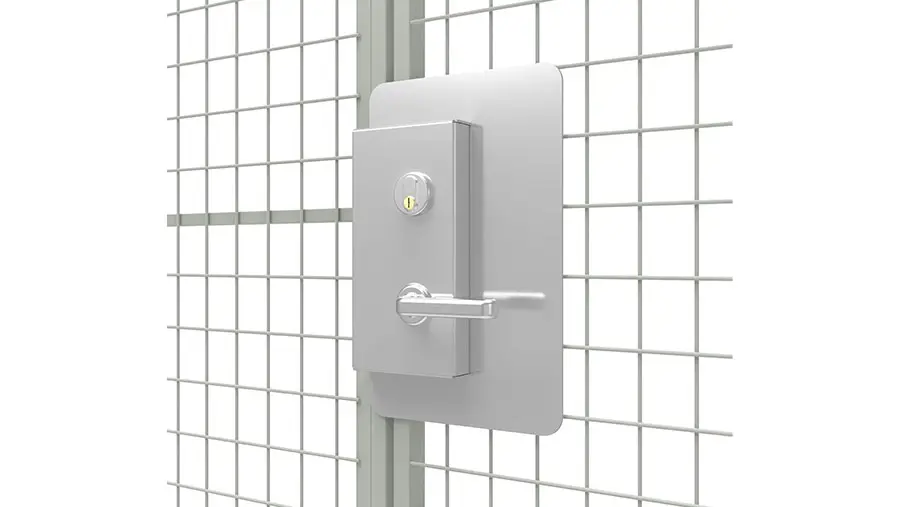

    34-90000 Cylinder lock (optional)
    1

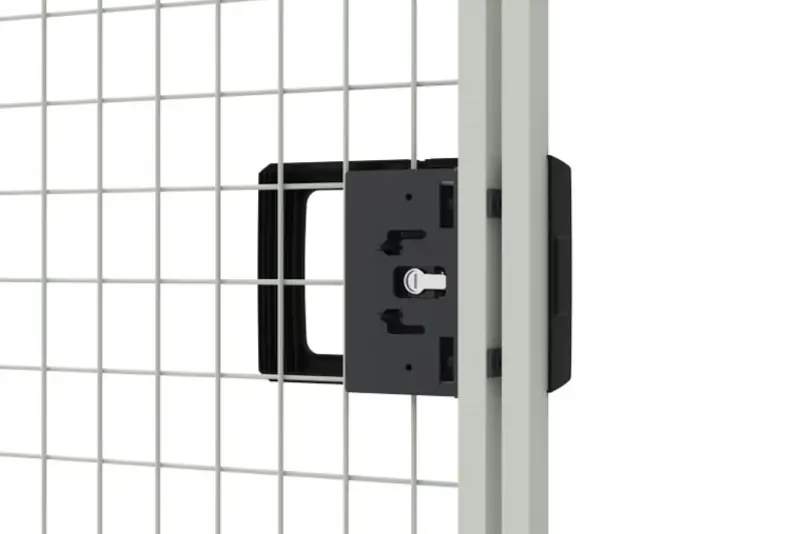

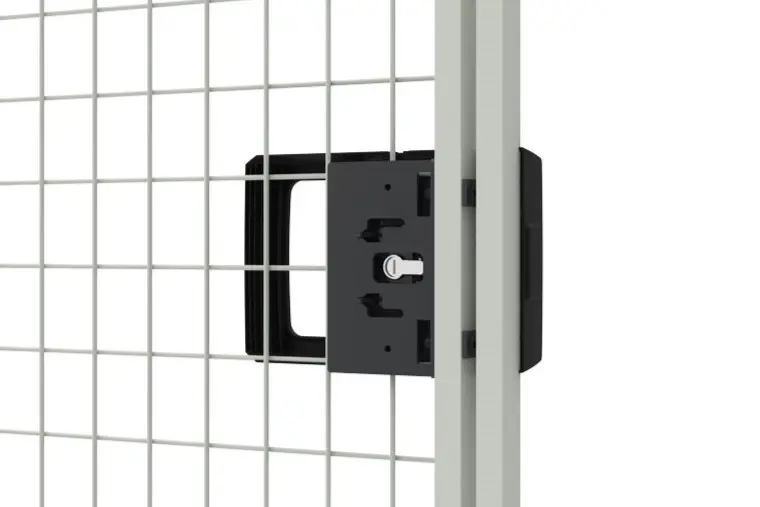

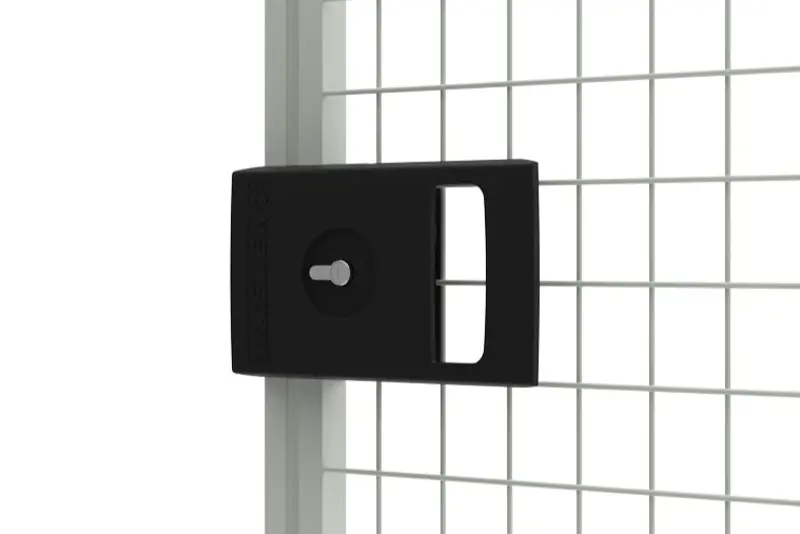

    XIT-L01-103 X-It cylinder lock, hinge door, left, System F
    2 2
    XIT-R01-103 X-It cylinder lock, hinge door, right, System F
    2 2

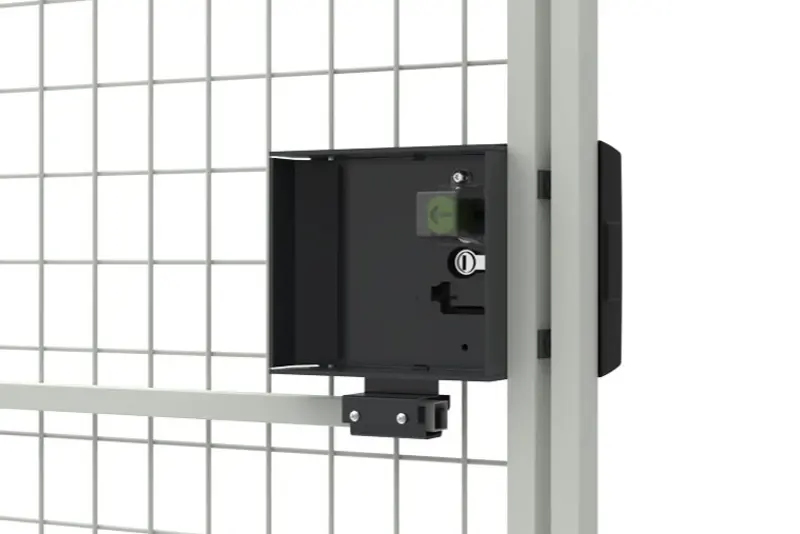

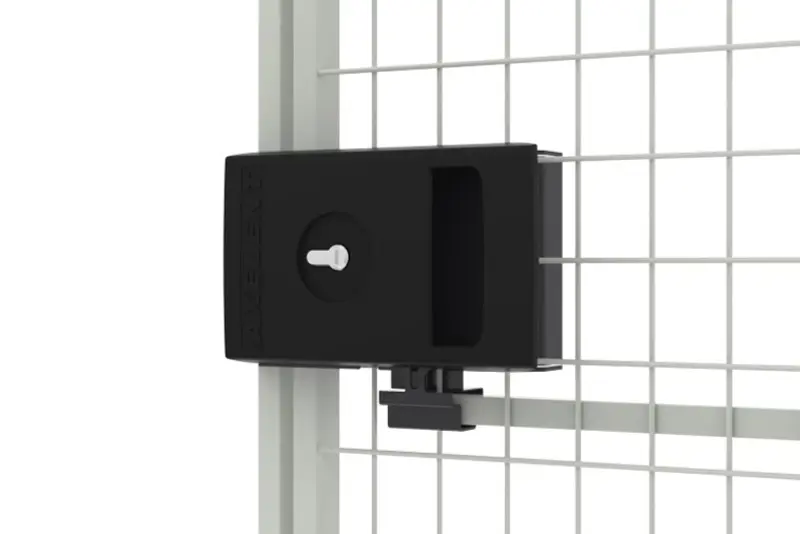

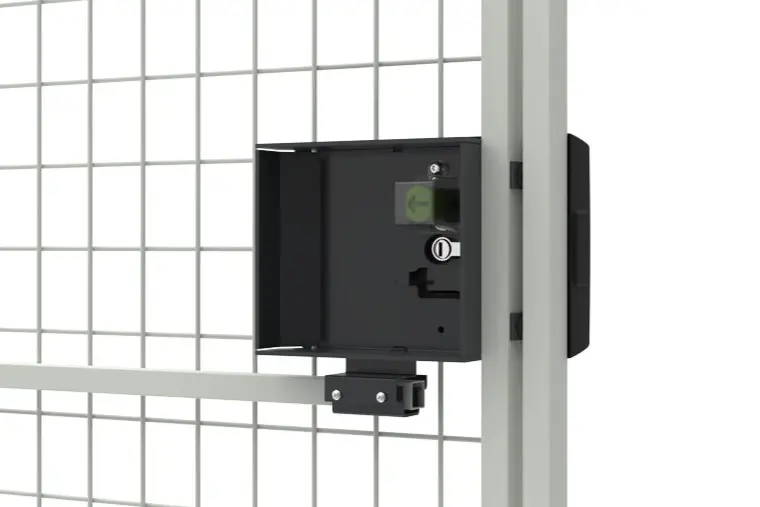

    XIT-L09-103 X-It Electric with escape release function, hinge door, left, System F
    2 1
    XIT-R09-103 X-It Electric with escape release function, hinge door, right, System F
    2 1
  • Wall section

    11 Articoli
    CAD Articolo Descrizione Larghezza (mm) Altezza (mm)

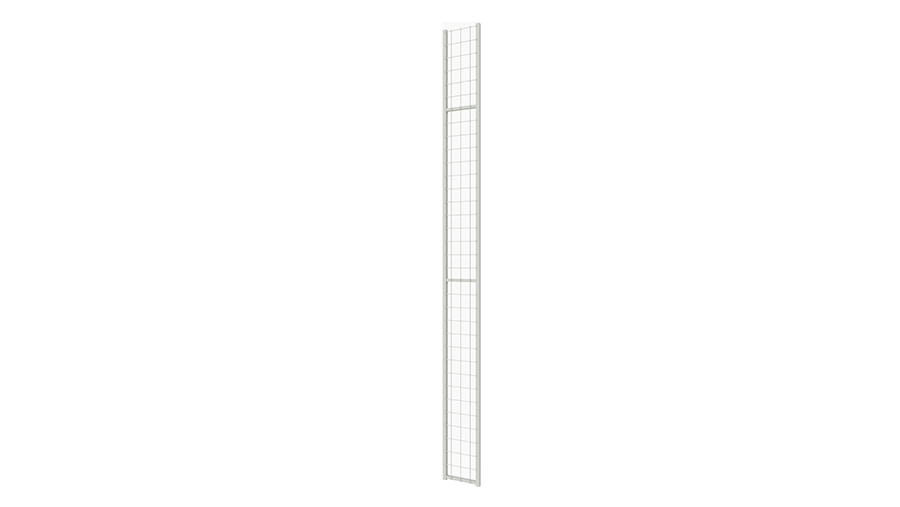

    30-2020 Wall section 200 2250
    1 3
    30-2025 Wall section 250 2250
    3
    30-2035 Wall section 350 2250
    3
    30-2040 Wall section 400 2250
    3
    30-2055 Wall section 550 2250
    3
    30-2060 Wall section 600 2250
    3

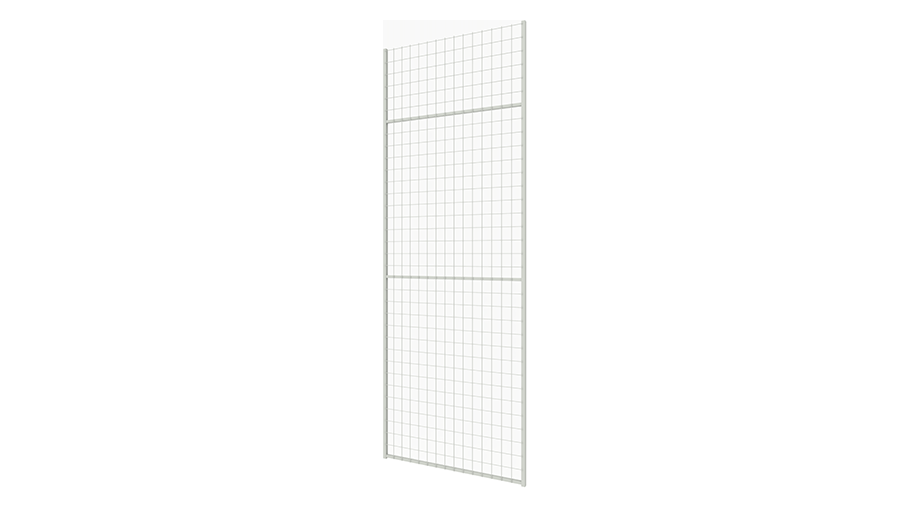

    30-2080 Wall section 800 2250
    2 3
    30-2100 Wall section 1000 2250
    3
    30-2110 Wall section 1100 2250
    3
    30-2120 Wall section 1200 2250
    3

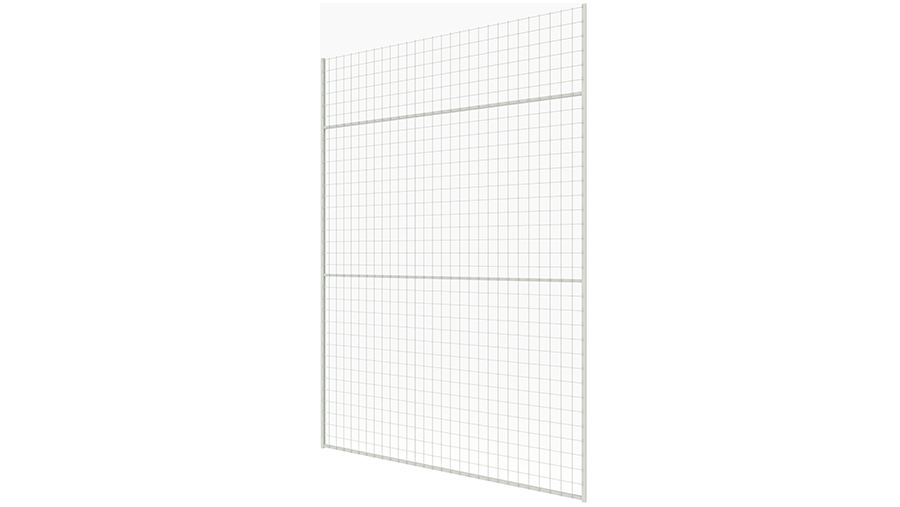

    30-2150 Wall section 1500 2250
    1 3
  • Accessories/Locks

    3 Articoli
    CAD Articolo Descrizione
    34-00110 Fittings for number patch, F/FK system
    2
    34-00120 Shelf, double mounting. 1200x400 mm
    1 3
    34-00130 Shelf, single mounting. 1200x400 mm
    1 3

File scaricati

Storeroom type F

Informazioni sui prodotti

Storeroom mesh

Manuale di Installazione

Storeroom roof

Manuale di Installazione

Axelent | Storeroom

Brochure

Storeroom Technical information

Informazioni sui prodotti

Informazioni sui prodotti

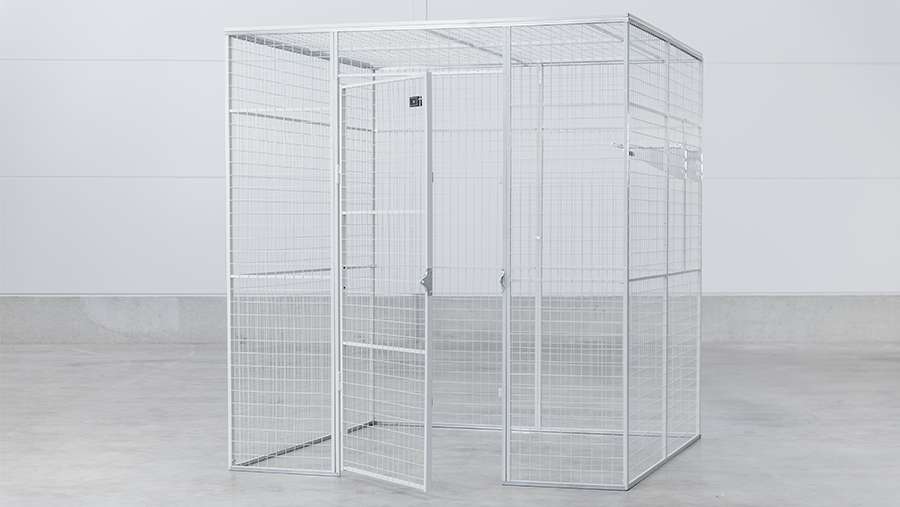

Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.

• With extra robust tubular construction in the doors.
• Can be combined with the FK and FP systems.
• Can be cut to suit existing construction.
• Can be supplied with a roof for ceiling heights exceeding 3.5 metres.
• The walls are painted in RAL 9018.



Product facts
Product Size (mm) Description
Vertical tubes 19x19 Tubular steel frame, door
Horizontal tubes 15x15 Tubular steel frame, wall
Vertical tubes 30x20 Tubular steel frame, door
Horizontal tubes 25x15 Tubular steel frame, door
Vertical wires Ø 3 Steel mesh
Horizontal wires Ø 2,5 Steel mesh
Dimensions 50x65
30-4225750(1) 2000x710 Door opening dimensions
30-4275900(1) 2000x860 Door opening dimensions
