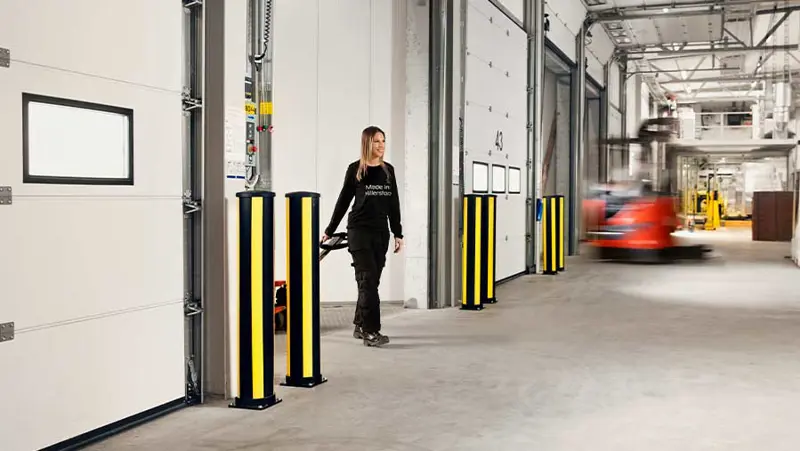

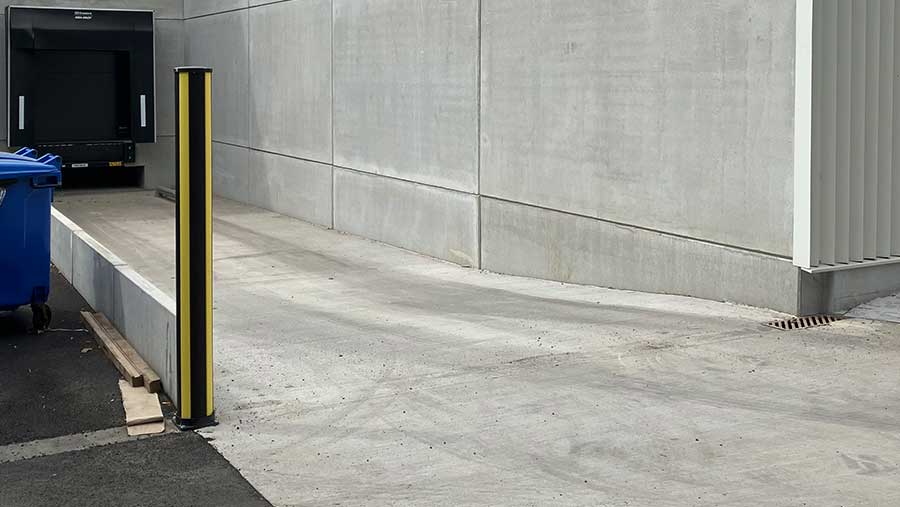

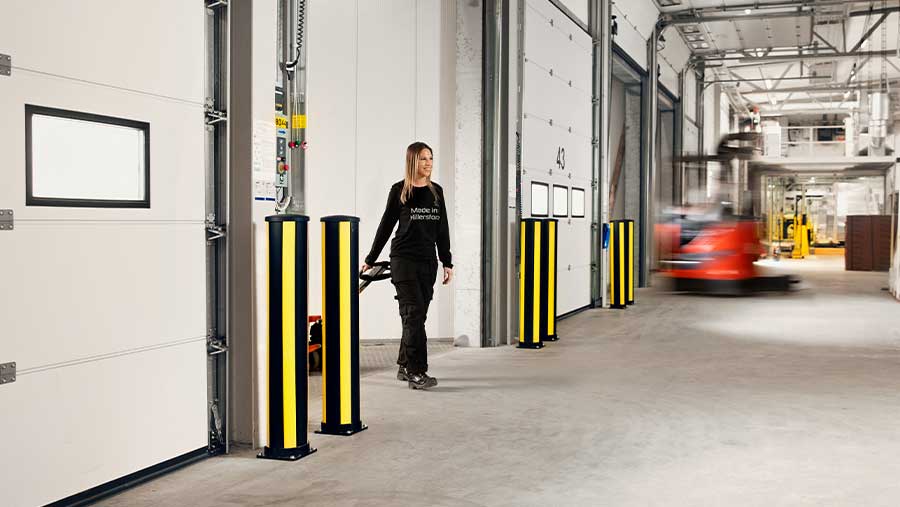

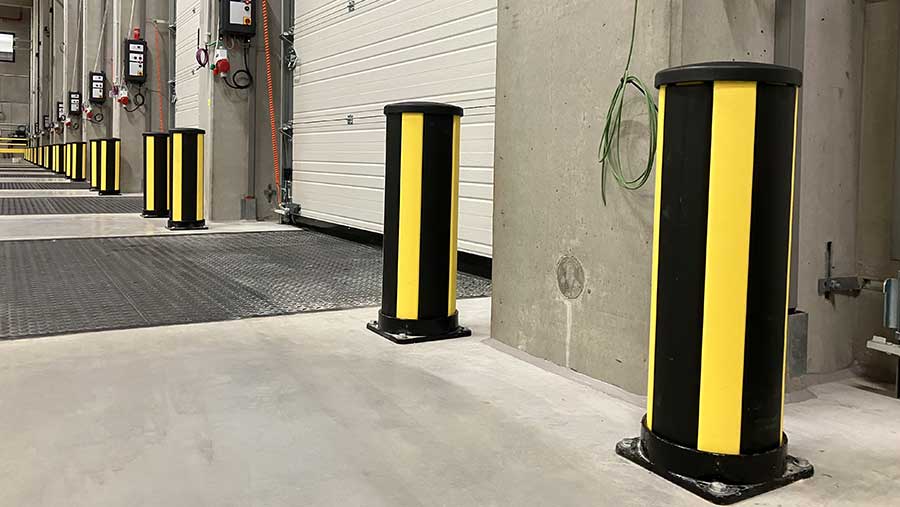

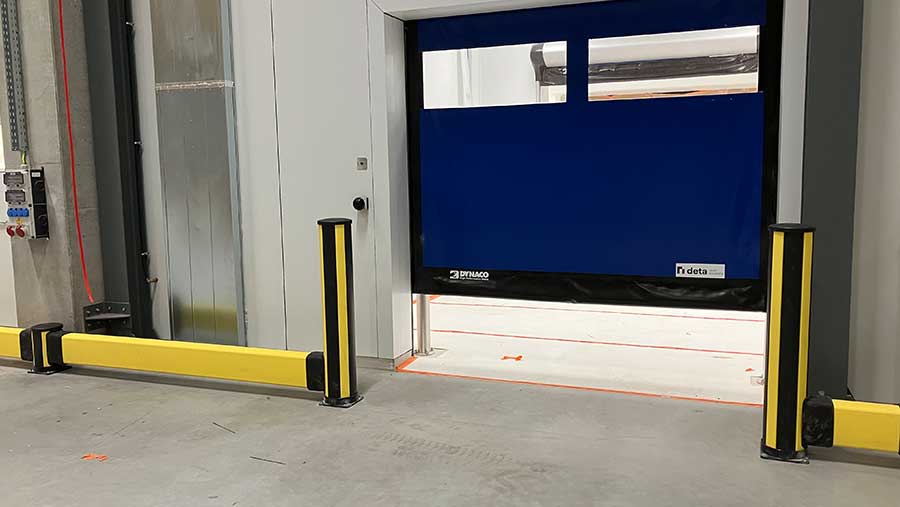

X-Protect Bollards safeguard corners, doorways and equipment from vehicle impacts. The black and yellow colour scheme enhances visibility and helps direct forklift traffic, creating safer, well-organised industrial routes.

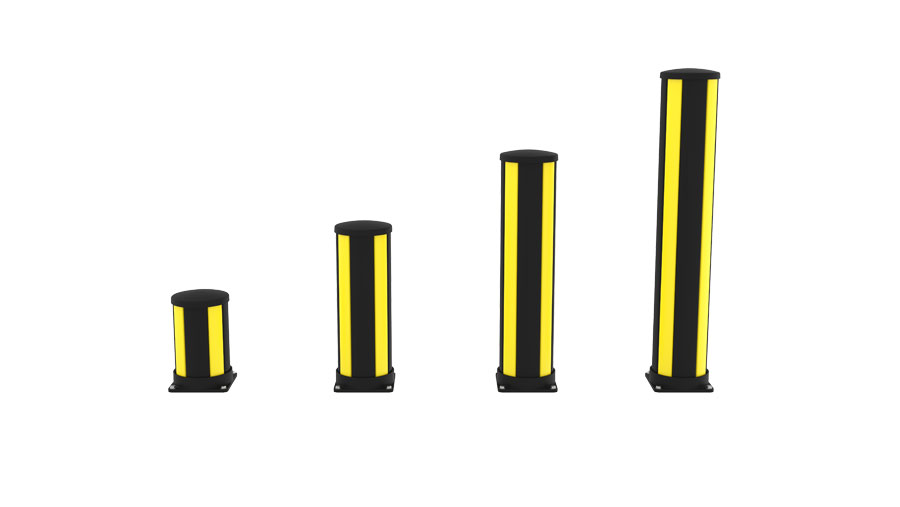

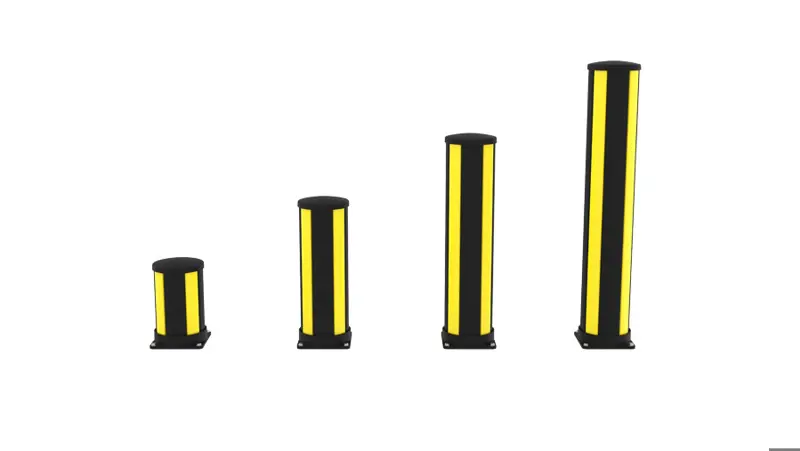

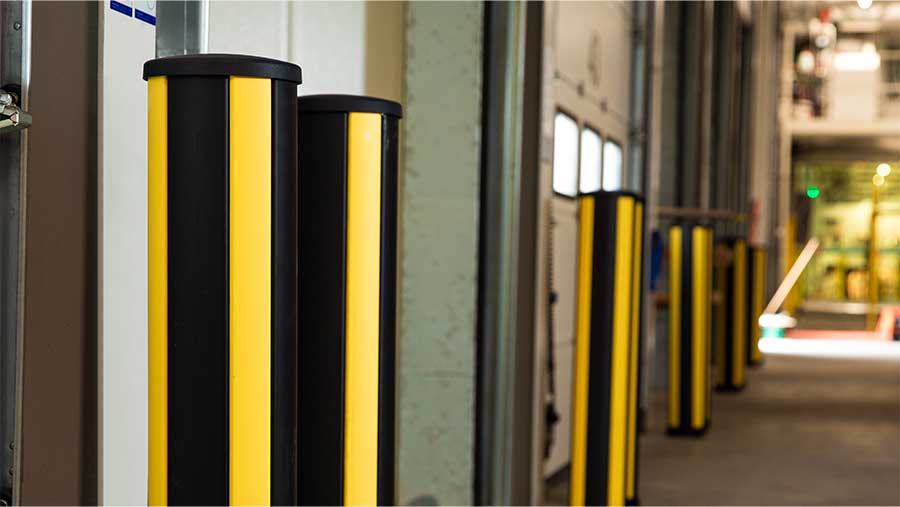

The X-Protect Classic Bollards are built for heavy-duty protection in areas exposed to frequent vehicle movement. Ideal for safeguarding doorways, exposed corners and machinery, they attract attention and help drivers navigate safely along traffic routes. The Classic Bollards are available in four sizes, from 350 to 1160 mm, and can also be seamlessly integrated into the X-Guard Machine Guard System, creating a continuous safety solution across the facility.

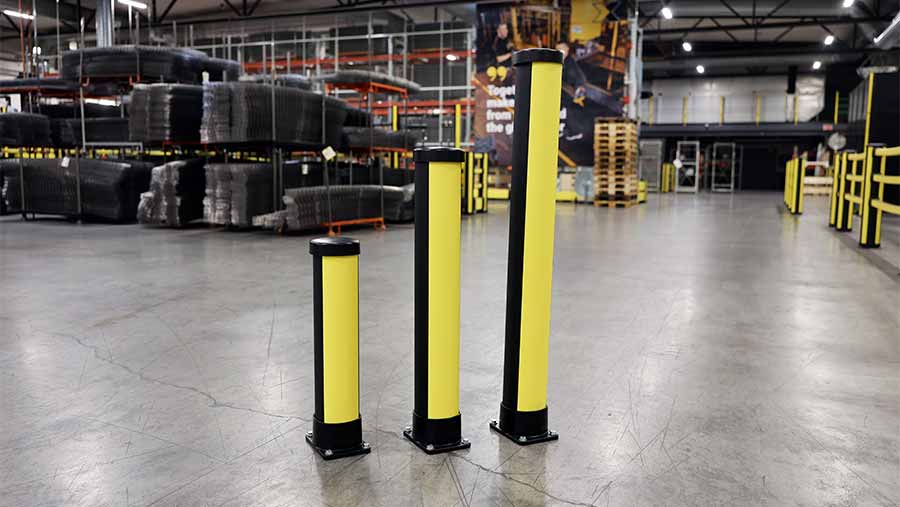

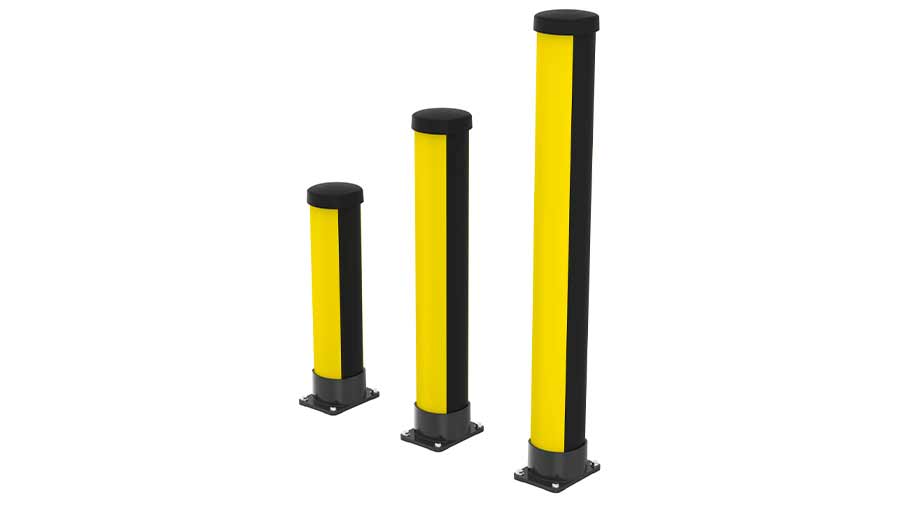

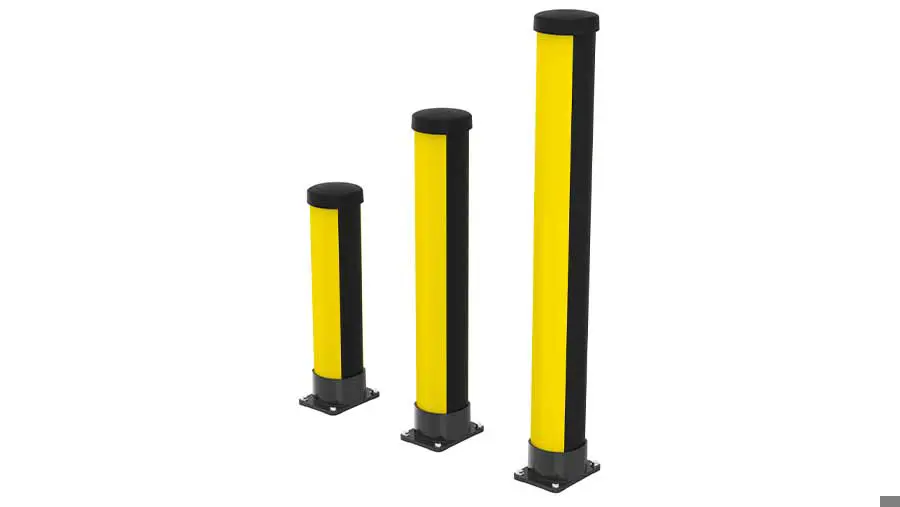

The X-Protect Essential Bollards, by contrast, are designed for light-duty impact zones where flexibility and fast installation are key. They provide dependable ground-level protection against accidental contact from forklifts, AMRs or pallet trucks while maintaining an open layout. Available in four sizes from 620 to 1170 mm, the Essential Bollards allow easy adaptation to different layouts and traffic conditions.

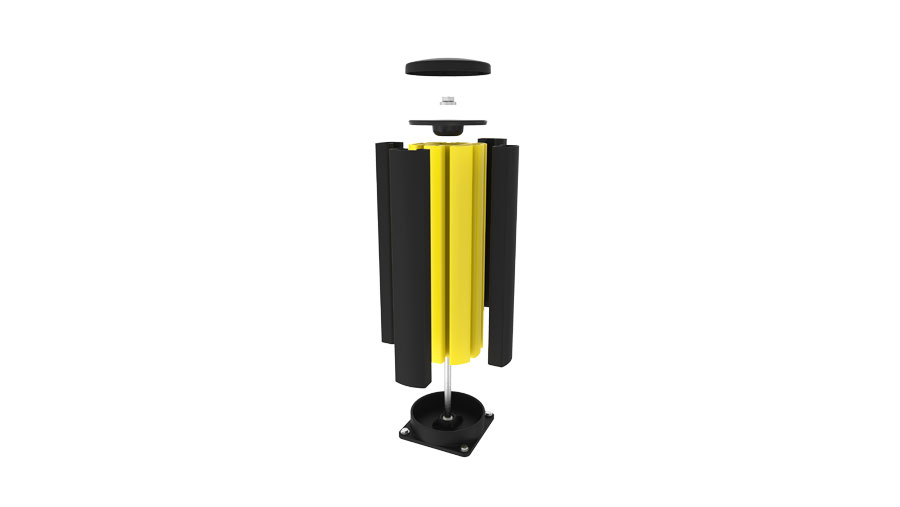

As part of the X-Protect Impact Protection System, both bollard types feature modular components, quick installation and easy maintenance which gives long-term performance with minimal disruption.
Key features
- Fast to install
- Kind to the floor
- Easy to repair
| Impact test results |
| Classic Bollard |
| Bollard height |
Load |
Equivalent to |
90° Deflection |
Force to fixings |
| 350mm |
3200 J |
2500 kg
5.7 km/h |
5000 kg
4 km/h |
NA* |
18 kN |
| 610mm |
5250 J |
2500 kg
7.3 km/h |
5000 kg
5.2 km/h |
300mm |
19.5 kN |
| 870mm |
5250 J |
2500 kg
7.3 km/h |
5000 kg
5.2 km/h |
420mm |
17.5 kN |
| 1160mm |
5250 J |
2500 kg
7.3 km/h |
5000 kg
5.2 km/h |
620mm |
12 kN |
| Essential Bollard |
| Bollard height |
Load |
Equivalent to |
90° Deflection |
Force to fixings |
| 620mm |
1500 J |
2500 kg
3.9 km/h |
1500 kg
5 km/h |
160mm |
5.6 kN |
| 880mm |
1500 J |
2500 kg
3.9 km/h |
1500 kg
5 km/h |
380mm |
6.4 kN |
| 1170mm |
1500 J |
2500 kg
3.9 km/h |
1500 kg
5 km/h |
585mm |
4.3 kN |
- Due to the bollard height, it is considered that the deflection is not critical for product selection.
