Magazzino a rete

Solid (FK)

3D

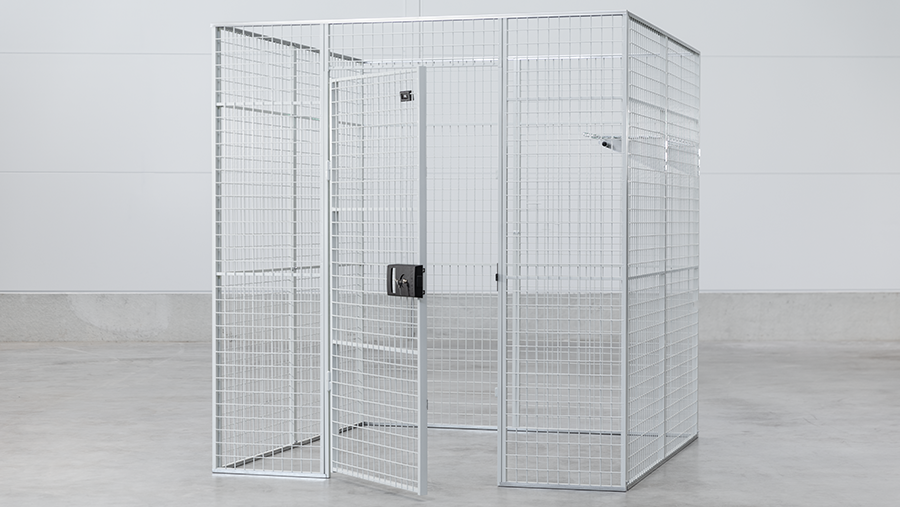

It is in the details that quality comes to the fore. Our FK storeroom system has a heavy duty tubular design for both its doors and walls, which makes the system secure and stable. Try combining FK with partitions from our F-system, the results are often really impressive.

Richiedi subito il tuo preventivo

Modelli

  • Door

    2 Articoli
    CAD Articolo Descrizione Larghezza (mm) Altezza (mm)

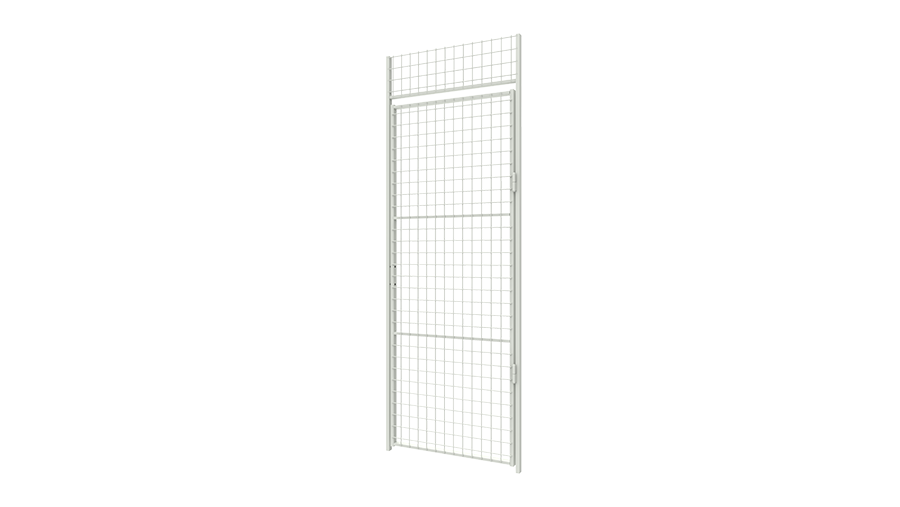

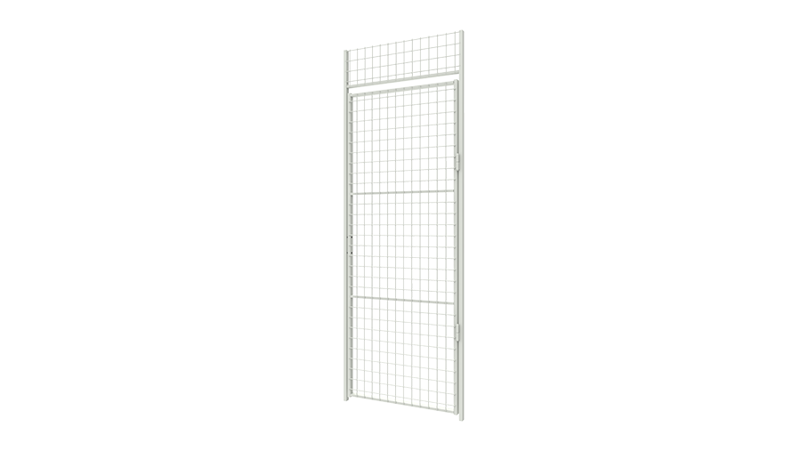

    40-4225750 Door 750 2250
    1 3

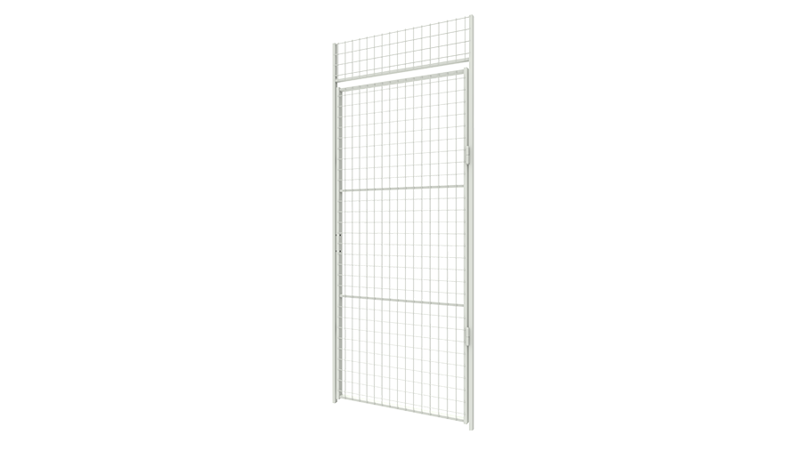

    40-4225900 Door 900 2250
    1 3
  • Locks

    6 Articoli
    CAD Articolo Descrizione
    34-00055 Reinforced padlock fitting with cover (standard)
    1
    34-90000 Cylinder lock (optional)
    1
    XIT-L01-104 X-It cylinder lock, hinge door, left, System FK
    2 2
    XIT-R01-104 X-It cylinder lock, hinge door, right, System FK
    2 2
    XIT-L09-104 X-It Electric with escape release function, hinge door, left, System FK
    2 1
    XIT-R09-104 X-It Electric with escape release function, hinge door, right, System FK
    2 1
  • Wall section

    10 Articoli
    CAD Articolo Descrizione Larghezza (mm) Altezza (mm)

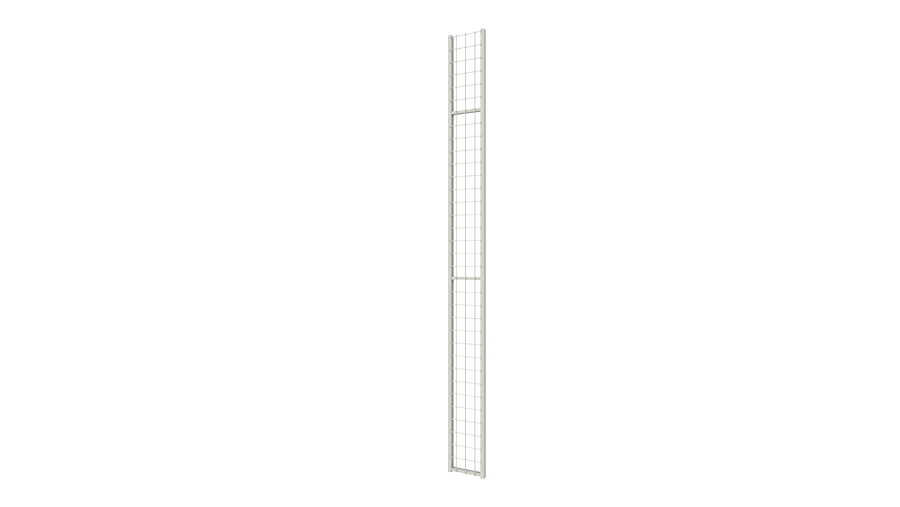

    40-2020 Wall section 200 2250
    1 3
    40-2025 Wall section 250 2250
    3
    40-2035 Wall section 350 2250
    3
    40-2040 Wall section 400 2250
    3
    40-2055 Wall section 550 2250
    3
    40-2060 Wall section 600 2250
    3

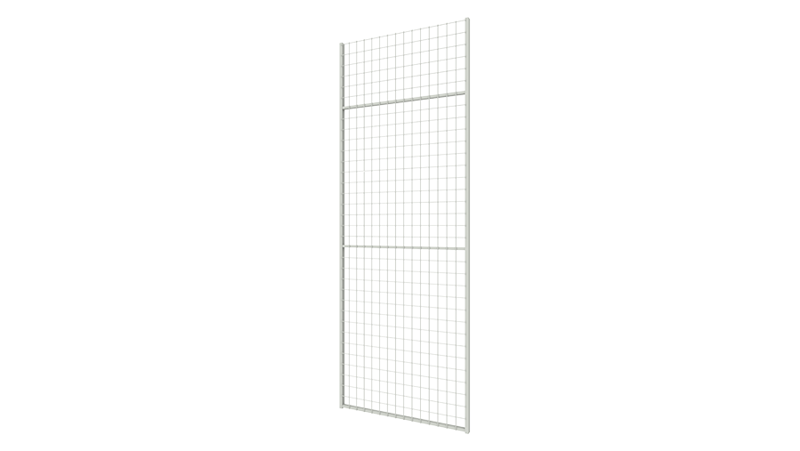

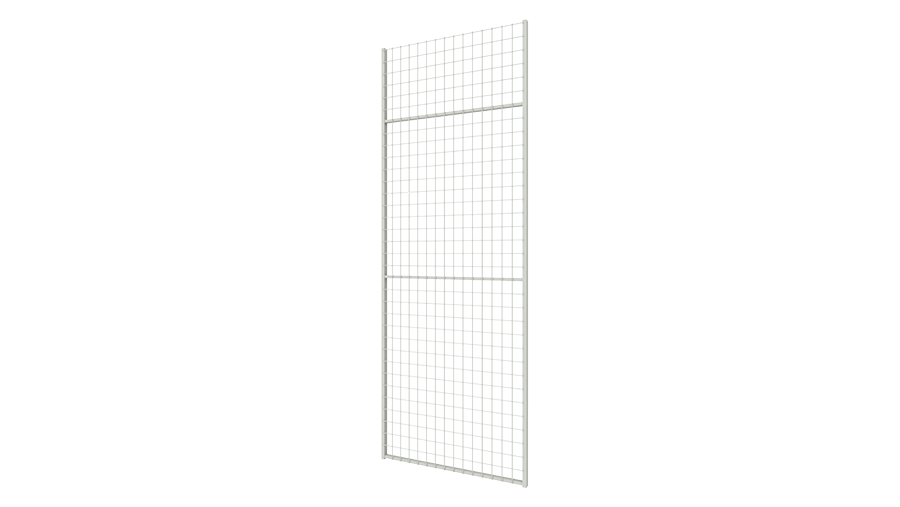

    40-2080 Wall section 800 2250
    2 3
    40-2100 Wall section 1000 2250
    3
    40-2110 Wall section 1100 2250
    3

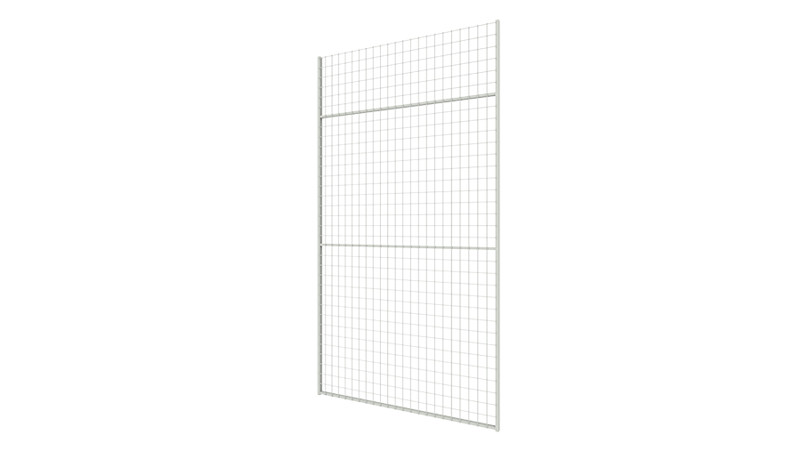

    40-2120 Wall section 1200 2250
    1 3
  • Accessories/Locks

    3 Articoli
    CAD Articolo Descrizione
    34-00110 Fittings for number patch, F/FK system
    2
    34-00120 Shelf, double mounting. 1200x400 mm
    1 3
    34-00130 Shelf, single mounting. 1200x400 mm
    1 3

File scaricati

Storeroom type FK

Informazioni sui prodotti

Storeroom roof

Manuale di Installazione

Storeroom mesh

Manuale di Installazione

Axelent | Storeroom

Brochure

Storeroom Technical information

Informazioni sui prodotti

Informazioni sui prodotti

It is in the details that quality comes to the fore. Our FK storeroom system has a heavy duty tubular design for both its doors and walls, which makes the system secure and stable. Try combining FK with partitions from our F-system, the results are often really impressive.

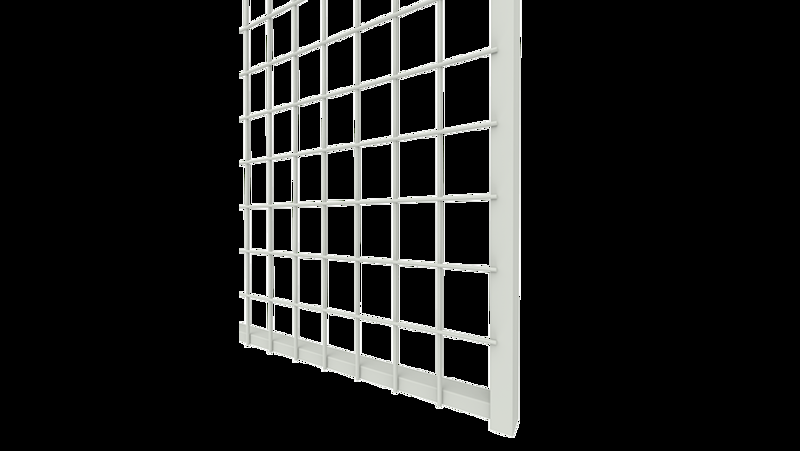

  • Extra robust tubular construction in both doors and walls.
  • Can be combined with the F and FP systems.
  • Can be cut to suit existing construction.
  • Can be supplied with a roof for ceiling heights exceeding 3.5 metres.
  • The walls are painted in RAL 9018.
Product Size (mm) Description
Vertical tubes 30x20 Tubular steel frame, wall
Horizontal tubes 35x15 Tubular steel frame, wall
Vertical tubes 30x20 Tubular steel frame, door
Horizontal tubes 35x15 Tubular steel frame, door
Vertical wires Ø 4,0 Steel mesh
Horizontal wires Ø 4,0 Steel mesh
Dimensions 50x65
40-4225750(1) 2000x710 Door opening dimensions
40-4225900(1) 2000x860 Door opening dimensions
